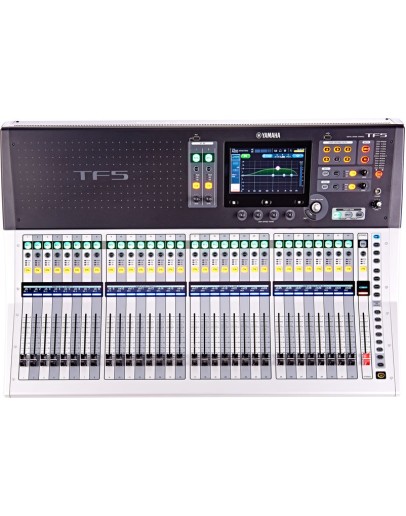

Fader Configuration
|
32 + 1 (Master)
|
|
Mixing Capacity
|
Input Channels
|
48 (40 mono + 2 stereo + 2 return)
|
|
Aux Buses
|
20 (8 mono + 6 stereo)
|
|
Stereo Buses
|
1
|
|
Sub Buses
|
1
|
|
Input channel functions
|
8 DCA Groups
|
|
I/O
|
Inputs
|
32 mic/line (XLR/TRS combo) + 2 stereo line
(RCA pin)
|
|
Outputs
|
16 (XLR)
|
|
Expansion slots
|
1
|
|
On-board processors
|
DSP
|
8 Effects + 10 GEQ
|
|
USB
|
34x34 USB Audio Interface, 2-track recording
via USB Storage Device
|
|
Sampling frequency rate
|
Internal
|
48 kHz
|
|
Signal delay
|
Less than 2.6 ms, INPUT to OMNI OUT, Fs=48
kHz
|
|
Fader
|
100 mm motorized, Resolution = 10-bit, +10
dB to –138 dB, –∞ dB all faders
|
|
Total harmonic distortion
|
Less than 0.05% 20 Hz–20 kHz @+4 dBu into
600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave
filter@80 kHz)
|
|
Frequency response
|
+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu
output @1kHz, INPUT to OMNI OUT
|
|
Dynamic range
|
110 dB typ., DA Converter, 107 dB typ.,
INPUT to OMNI OUT, Input Gain=Min.
|
|
Hum & noise level
|
Equivalent input noise
|
–128 dBu typ., Input Gain=Max. (Measured
with an A-Weight filter)
|
|
Residual output noise
|
–85 dBu, ST master off (Measured with an
A-Weight filter)
|
|
Crosstalk
|
–100 dB (Measured with a –30 dB/octave
filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
|
|
Power requirements
|
100–240 V 50/60 Hz
|
|
Power consumption
|
120 W
|
|
Dimensions
|
W
|
866 mm (34.1in)
|
|
H
|
225 mm (8.9in)
|
|
D
|
599 mm (23.6in)
|
|
Net weight
|
20.0 kg (44.1lb)
|
|
Accessories
|
Quick Guide, Power Cord, NUENDO LIVE (DAW
Software)
|
|
Options
|
Expansion Card, Foot Switch (FC5)
|
|
Others
|
Operating temperature range: 0–40 °C,
Storage temperature range: -20–60 °C
|
