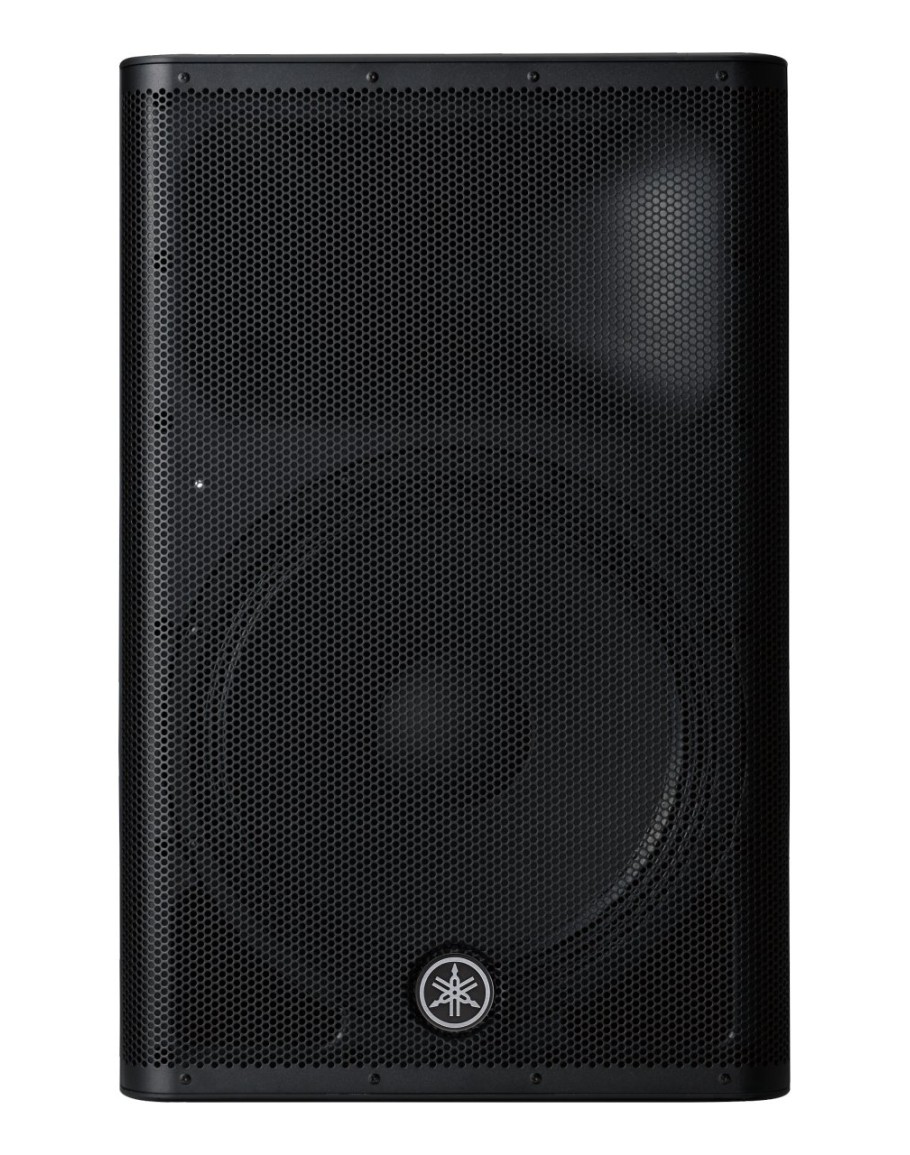

YAMAHA DXR15MKII

  • Tk. 120,000

Add to Wish List

Compare this Product

Availability: In Stock

Product Code: DXR15MKII

Louder, Lighter, Legendary

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.

TECHNICAL SPECIFICATION
All



DXR15mkII

Speaker type

15" 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB)

49Hz - 20kHz

Nominal coverage

H

90°

V

60°

Components

LF

Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite

HF

Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium

Crossover

FIR-X tuning™ (linear phase FIR filter)

Output power

Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)

Maximum output level (1m; on axis)

134dB SPL

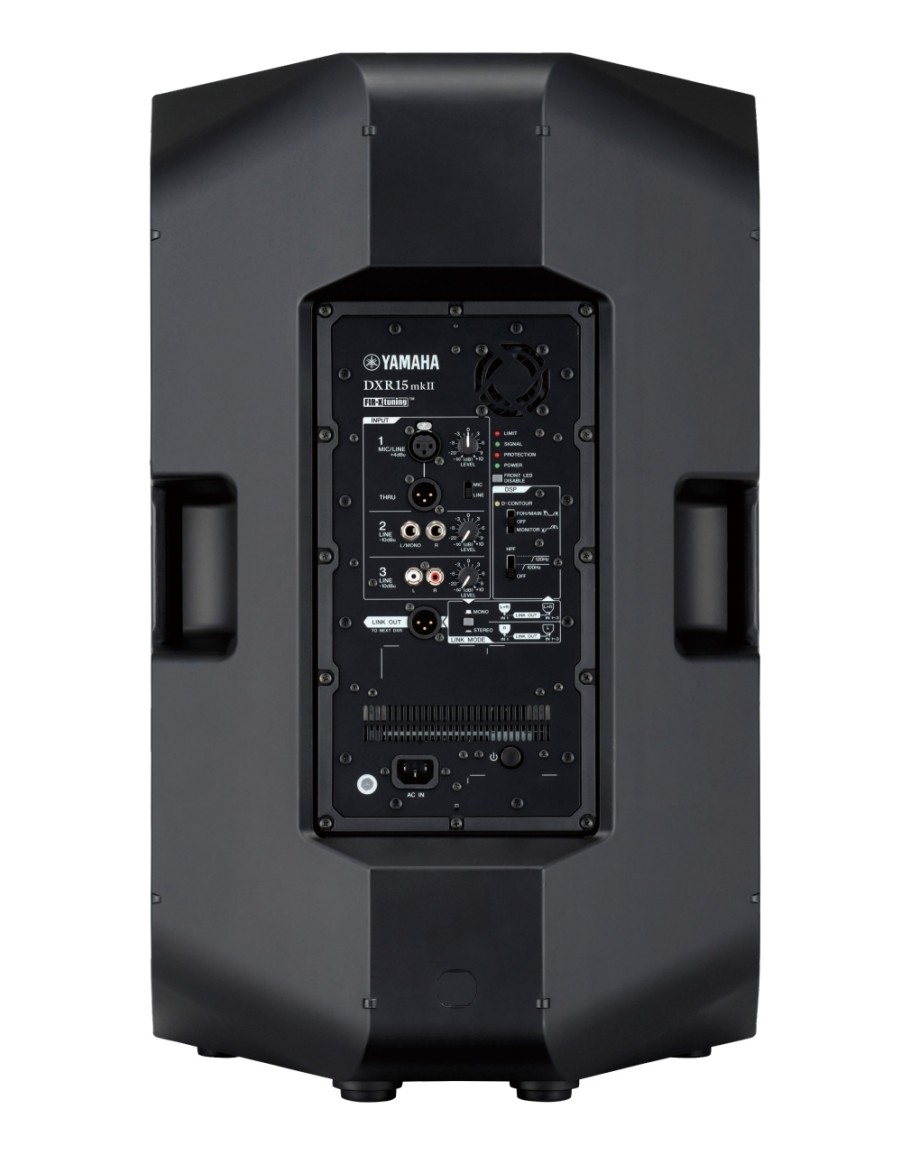

I/O connectors

INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1

Processors

D-CONTOUR: FOH/MAIN, MONITOR, OFF

Power requirements

100V - 240V, 50Hz/60Hz

Power consumption

110W

Flying and mounting hardware

Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)

Pole socket

35mm with 2-way features (0 or 7 degrees)

Dimensions

W

445mm (17 4/8")

H

700mm (27 4/8")

D

380mm (15")

Net weight

21.8kg (48.1lbs)

Accessories

UB-DXR15 (U-bracket)

Others

Material: ABS (Matte Finish, Black)
