This product needs to
be integrated into a system. Please consult Yamaha or one of our authorised
system integrators to get a quote.3.5"
Features:
·
Versatile subwoofer compatible with low and high impedance
systems
·
Sound and size ideally matched to the VXS1ML
·
SR-Bass™ technology delivers solid bass in a compact unit
·
Satellite connectors for easy setup
·
Dedicated wall/ceiling mount hardware supplied
·

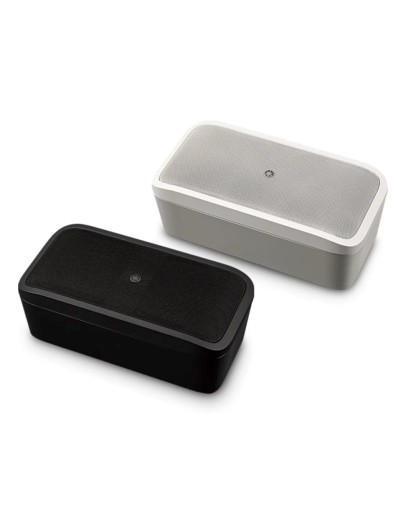

Black and white models available
·
Paintable enclosures and grilles
·
3.5" Dual SR-Bass™ subwoofer for high and low impedance
systems
| TECHNICAL SPECIFICATION |
| All |
|
VXS3SB
|
|
VXS3SB
|
|
Speaker type
|
SR-Bass™ type Subwoofer
|
|
Frequency range (-10dB)
|
65Hz-180Hz
|
|
Components
|
LF
|
3.5" Cone
|
|
Power rating
|
NOISE
|
20W
|
|
PGM
|
40W
|
|
PEAK
|
80W
|
|
Nominal impedance
|
8Ω
|
|
|
Satellite impedance
|
8Ω load per satellite output recommended *1
|
|
|
Transformer taps
|
100V
|
15W, 7.5W, 3.8W
|
|
70V
|
15W, 7.5W, 3.8W, 1.9W
|
|
SPL
|
Sensitivity (1W; 1m on axis)
|
79dB SPL *3
|
|
Peak (Calculated)
|
98dB SPL *4
|
|
I/O connectors
|
TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru:
+/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1～ST4)
|
|
|
Protection circuit
|
Load protection
|
Full-range power limiting for protecting
network and transducers
|
|
Shape
|
Rectangular
|
|
|
Cabinet material
|
ABS
|
|
|
Finish
|
VXS3SB:Black (approximate value:Munsell N3)
VXS3SW:White (approximate value:Munsell N9)
|
|
|
Dimensions
|
W
|
322mm (12.7") *5
|
|
H
|
162mm (6.4") *5
|
|
D
|
118mm (4.6") *5
|
|
Net weight
|
2.7kg (6.0 lbs) *5
|
|
|
Accessories
|
Mounting bracket, Safety wire, Spacer,
Screw, Masking sheet
|
|
|
Packaging
|
Packaged each
|
|
|
Certificate
|
NFPA70, CE, RoHS
|
|
|
Options
|
CMA3SB / CMA3SW: Ceiling Mount Adapter
|
|
|
EN54-24 compliance
|
