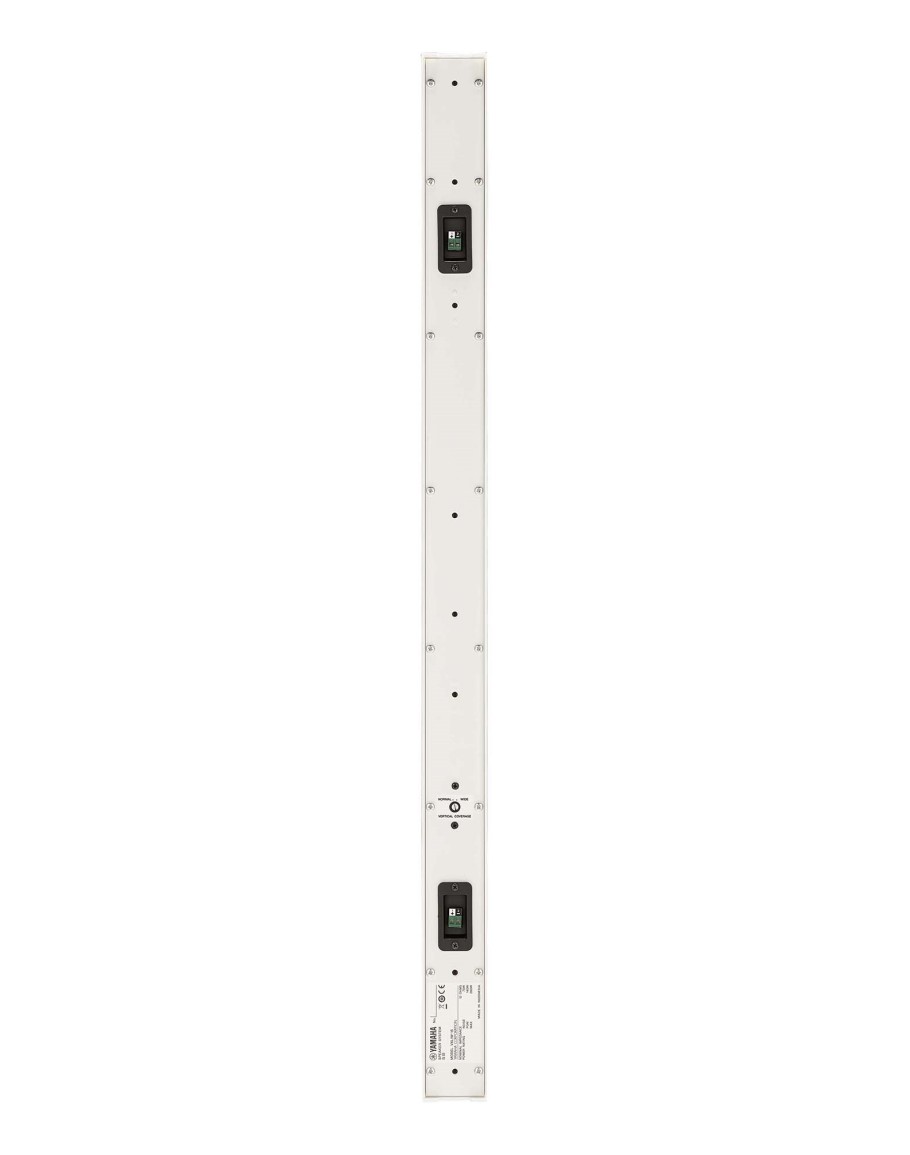

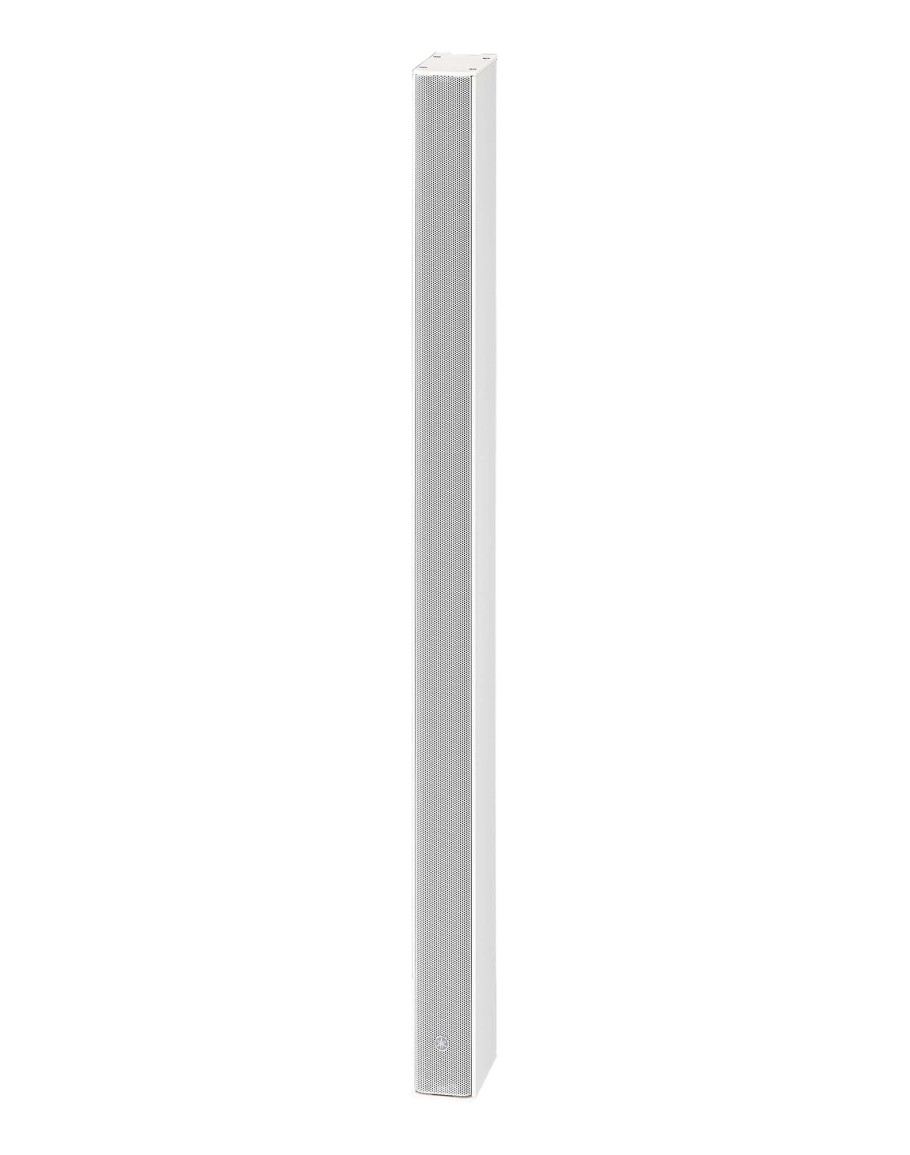

Slim line array
loudspeaker with 16 x 1.5” drivers
Features:
·
1.5 inch (3.75 cm) full-range loudspeaker units with neodymium
magnets
·
170° horizontal dispersion for uniform SPL over a wide listening
area
·
Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
·
Slim design complements any interior décor
·
Available in black or white
·
Enclosures can be painted to match surroundings
·

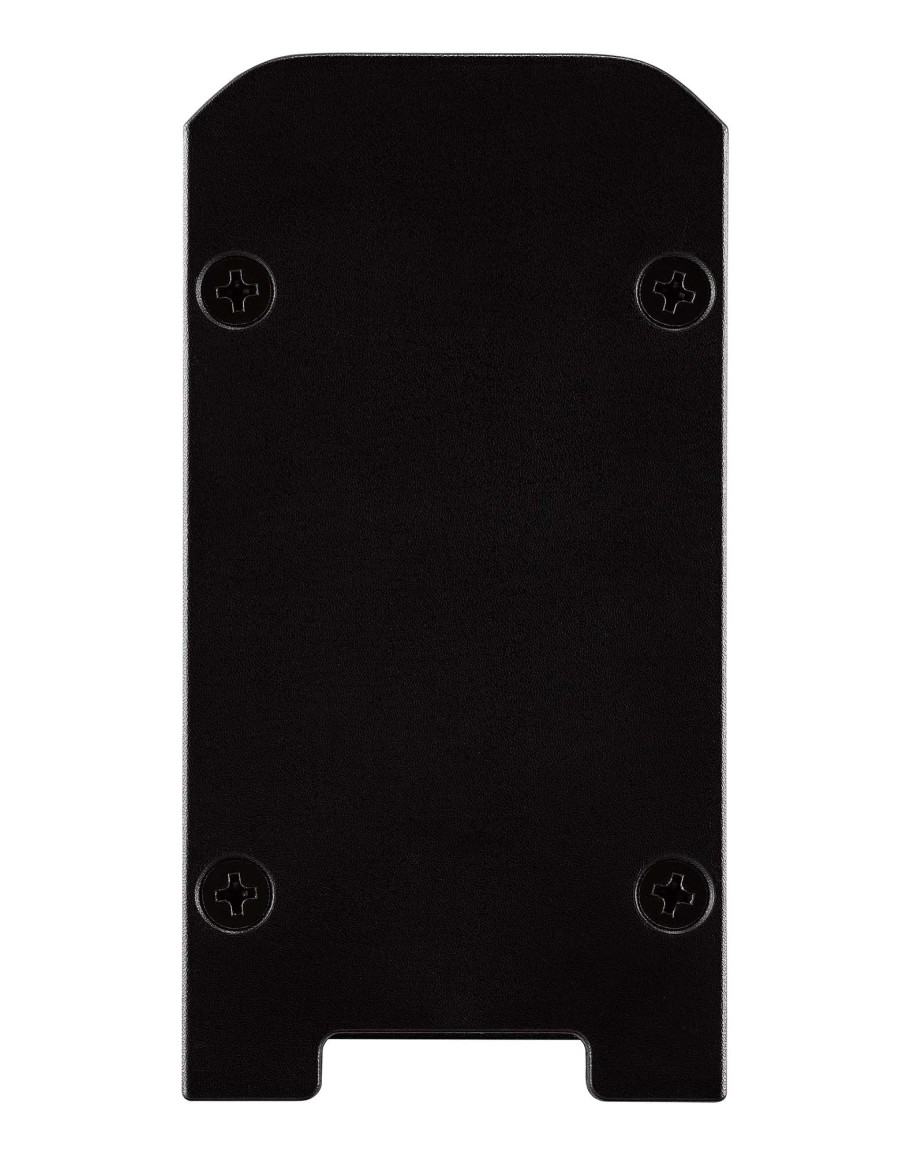

Wall mount bracket supplied
·
Optional hardware for a wide range of installation needs
| TECHNICAL SPECIFICATION |
| All |
|
VXL1B-16
|
|
Speaker
type
|
Full-range,
Bass reflex
|
|
Frequency
range (-10dB)
|
81
Hz – 20 kHz *1 108 Hz - 20kHz 1 (w/ port cover)
|
|
Coverage
area
|
Horizontal:
170°, Vertical:20°（ +10° – -10°） (NORMAL), 40°（+10° – -30°） (WIDE)
|
|
Components
|
LF-HF
|
1.5”
(3.75 cm) Cone × 16
|
|
Power
rating
|
NOISE
|
80
W
|
|
PGM
|
160
W
|
|
PEAK
|
320
W
|
|
Nominal
impedance
|
12Ω
|
|
|
SPL
|
Sensitivity
(1W; 1m on axis)
|
91
dB SPL (1 m/1 W) *1 *2
|
|
Peak
(Calculated)
|
116
dB SPL (1 m) *3
|
|
I/O
connectors
|
Euroblock
(2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
|
|
|
Protection
circuit
|
Load
protection
|
Full-range
power limiting to protecting network and transducers
|
|
Finish
|
VXL1B-16:
Black painting (approximate value: Munsell N3.0), VXL1W-16: White painting
(approximate value: Munsell N9.0)
|
|
|
IP-Rating
|
Dust
and water resis tant : IP35
|
|
|
Packaging
|
Packaged
in 1 pc
|
|
|
Dimensions
(W x H x D)
|
2.1
x 33.3 x 4.1 in. (54 x 846 x 104 mm) - Speaker Only, 2.1 x 33.3 x 4.4 in. (54
x 846 x 111.5 mm) - with Included Bracket
|
|
|
Weight
|
3.9
kg / 8.6 lbs (Speaker only)
|
|
|
