VXS series “S” model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
| TECHNICAL SPECIFICATION |
| All |
|
Description
|
VXS3SW
|
|
Width
|
322mm (12.7") *5
|
|
Height
|
162mm (6.4") *5
|
|
Depth
|
118mm (4.6") *5
|
|
Weight
|
2.7kg (6.0 lbs) *5
|
|
Speaker type
|
SR-Bass™ type Subwoofer
|
|
Frequency range (-10dB)
|
65Hz-180Hz
|
|
Components LF-HF
|
3.5" Cone
|
|
NOISE
|
20W
|
|
PGM
|
40W
|
|
PEAK
|
80W
|
|
Sensitivity (1W; 1m on axis)
|
79dB SPL *3
|
|
Nominal impedance
|
8Ω
|
|

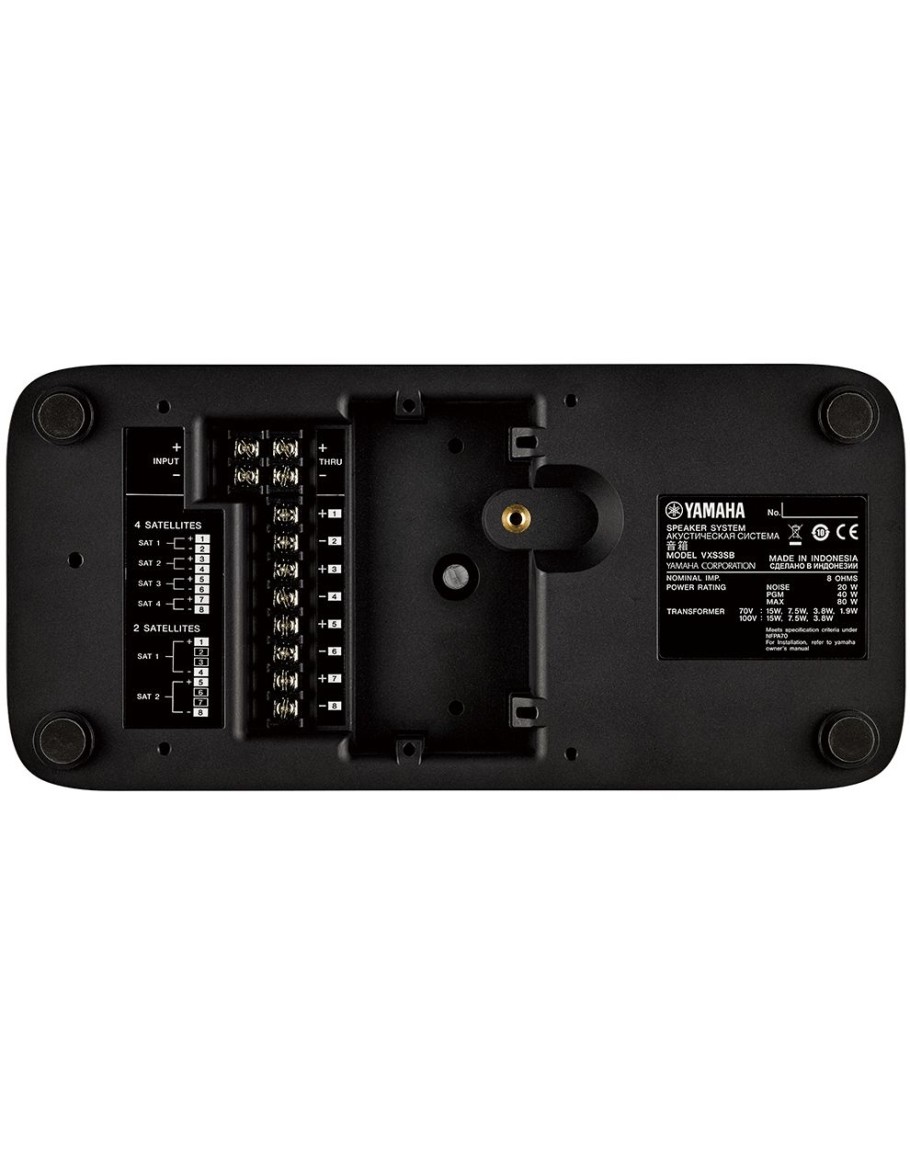

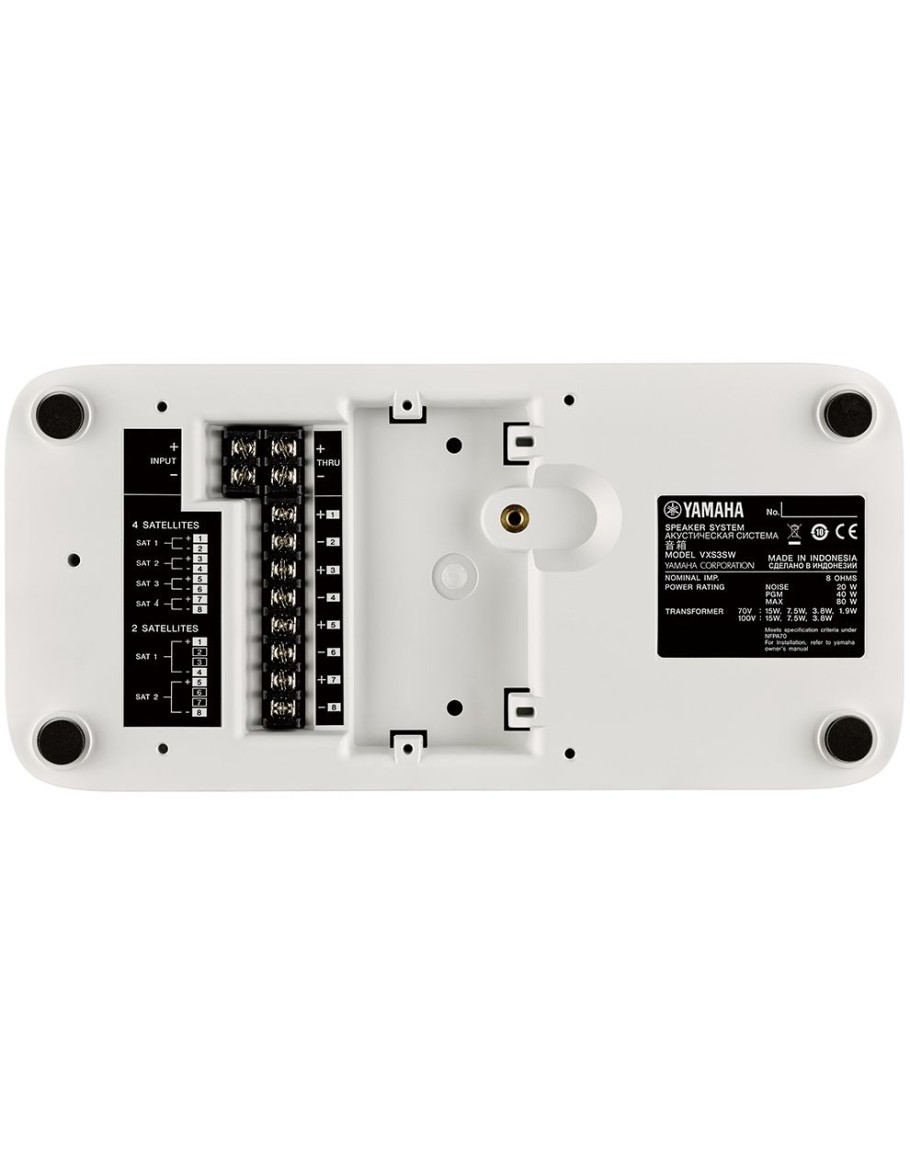

I/O connectors
|
TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru:
+/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1～ST4)
|
|
Load protection
|
Full-range power limiting for protecting
network and transducers
|
|

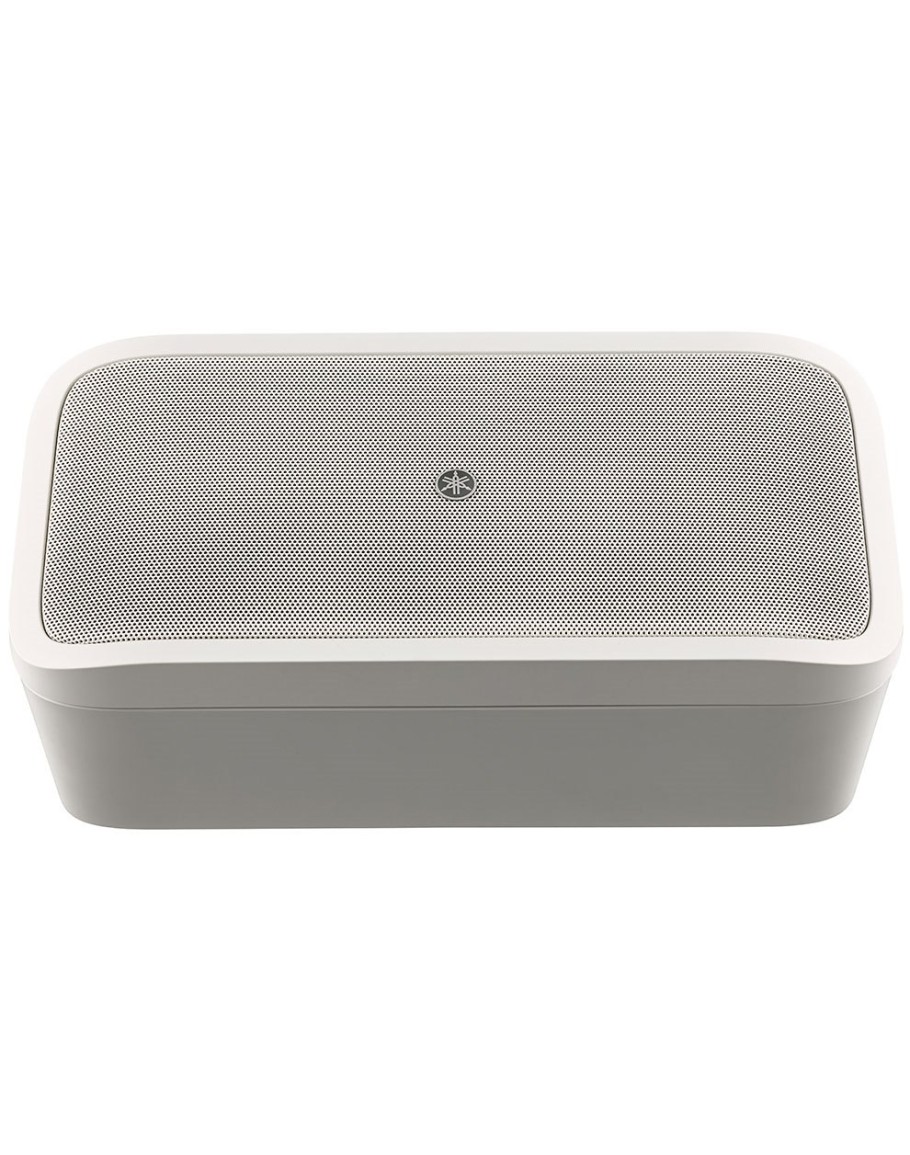

Finish
|
VXS3SW:White (approximate value:Munsell N9)
|
|
Accessories
|

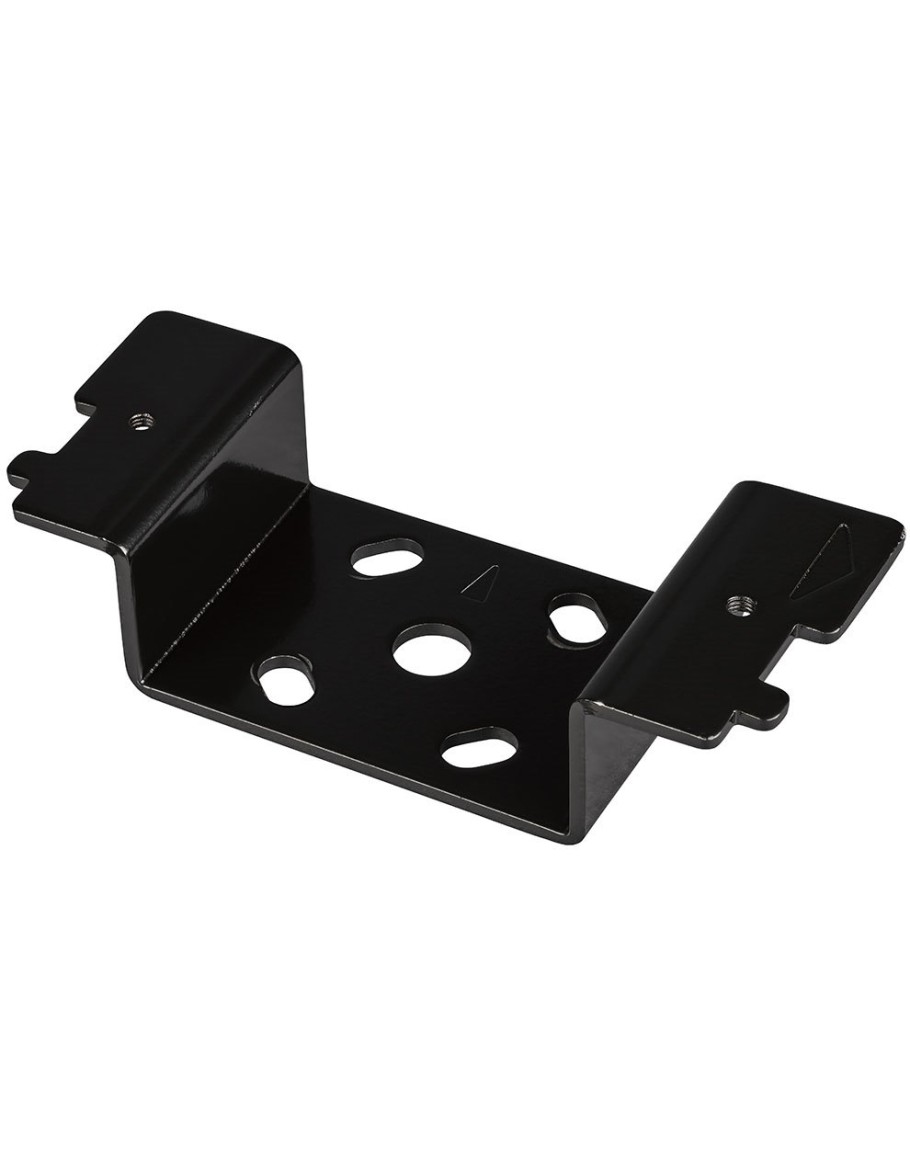

Mounting bracket, Safety wire, Spacer, Screw,
Masking sheet
|
|
Certificate
|
NFPA70, CE, RoHS
|
|
