Slim line array speaker with 8
x 1.5” drivers
Features:
• 1.5
inch (3.75 cm) full-range speaker units with neodymium magnets
• Wide
horizontal dispersion for uniform SPL over a wide area
• Slim
design complements any interior décor

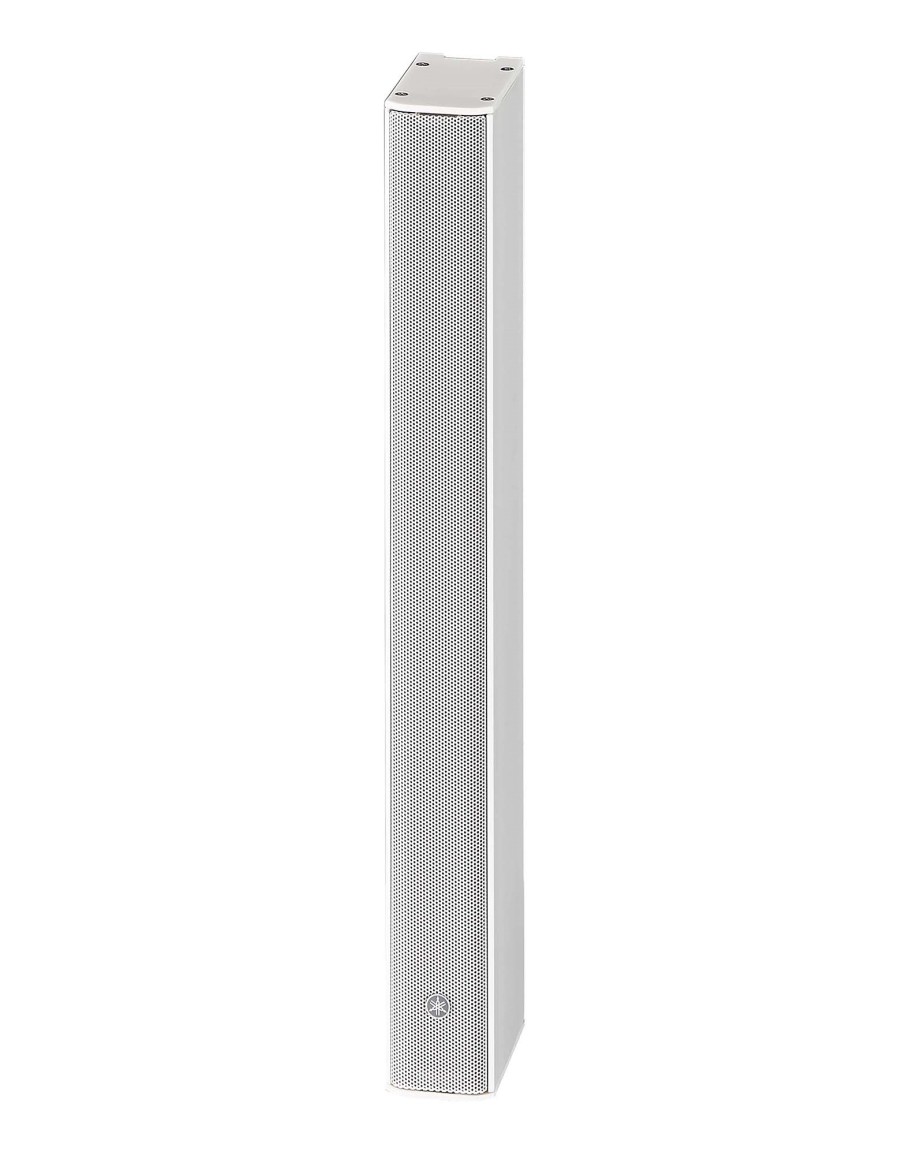

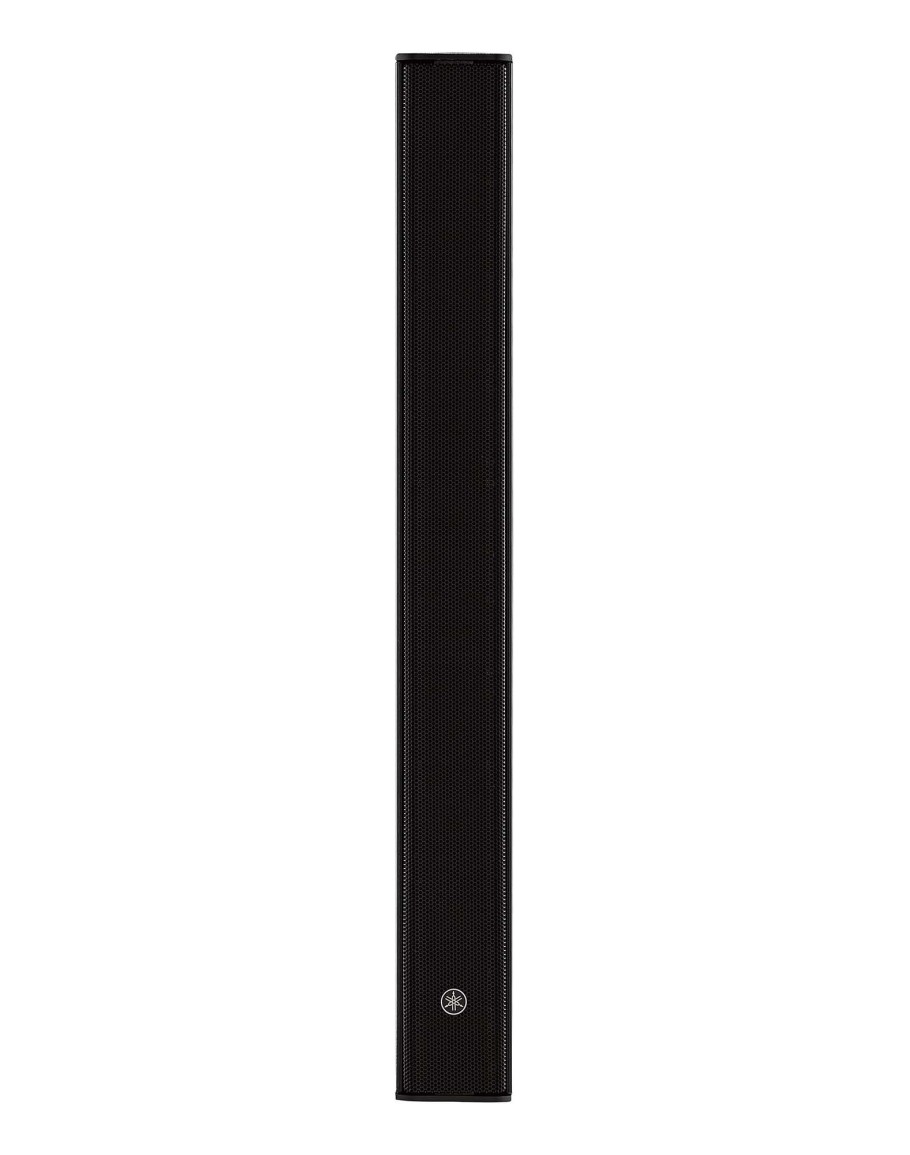

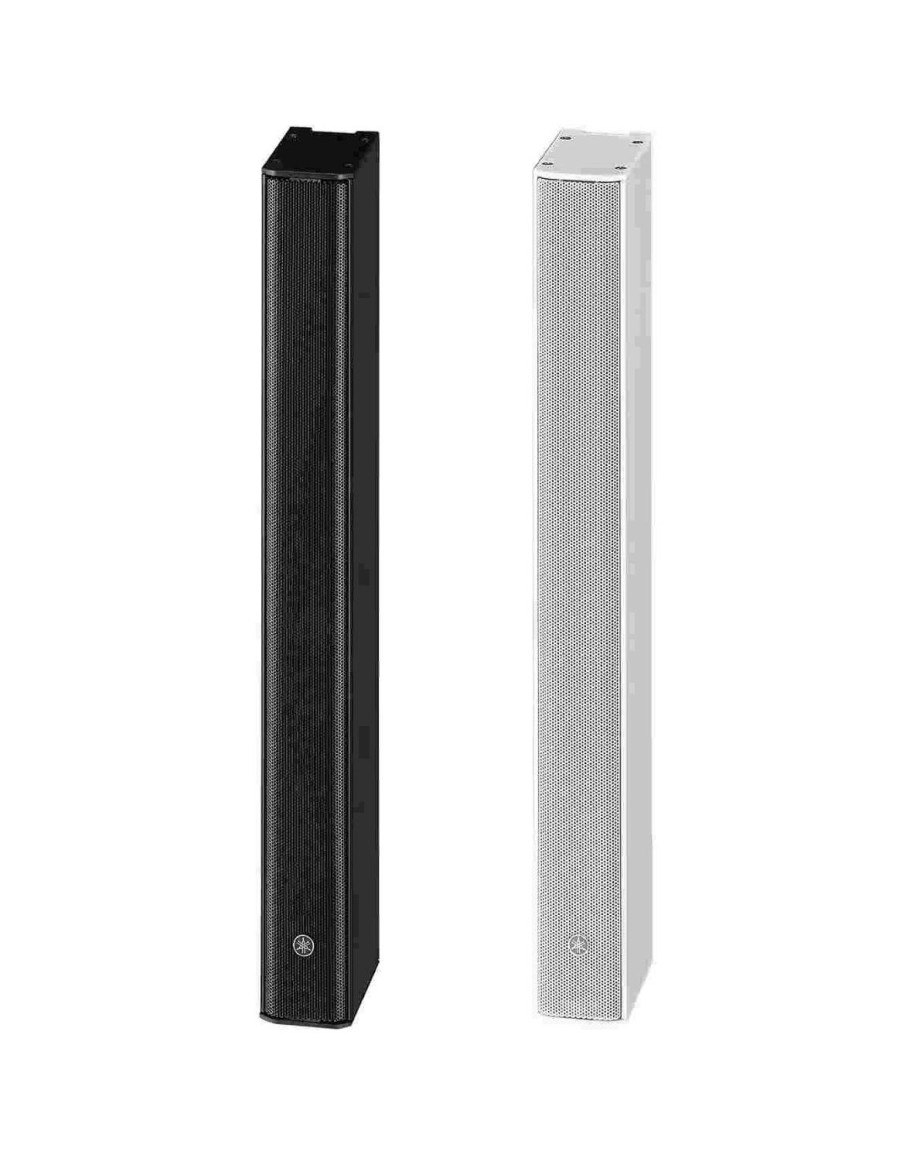

• Available
in basic black or white
• Enclosures
can be painted to match surroundings

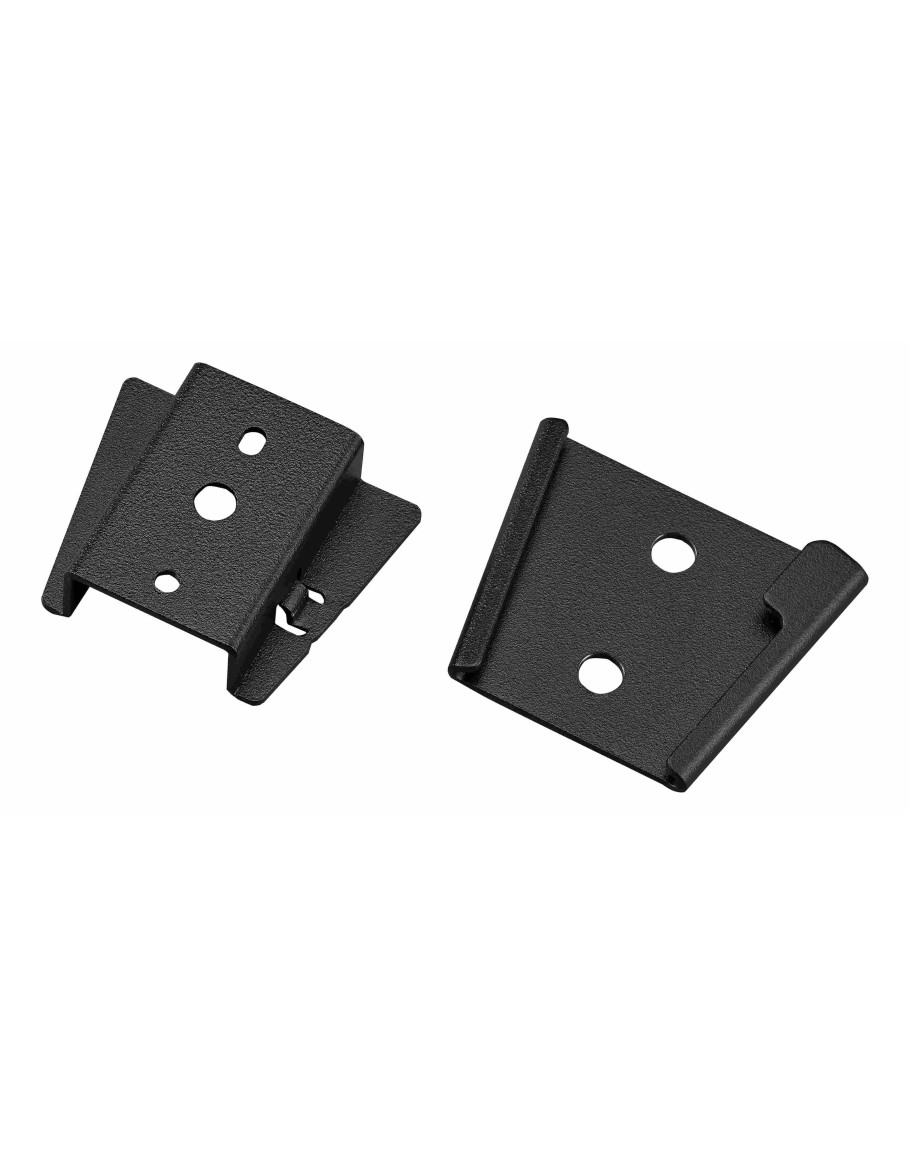

• Wall
mount bracket supplied
• Optional
hardware for a wide range of installation needs
| TECHNICAL SPECIFICATION |
| All |
|
VXL1B-8
|
|
Speaker
type
|
Full-range,
Bass reflex
|
|
Frequency
range (-10dB)
|
70
Hz – 20 kHz *1 110 Hz - 20kHz 1 (w/ port cover)
|
|
Coverage
area
|
Horizontal:
170°, Vertical:40°（+20° – -20°）
|
|
Components
|
LF-HF
|
1.5”
(3.75 cm) Cone × 8
|
|
Power
rating
|
NOISE
|
40
W
|
|
PGM
|
80
W
|
|
PEAK
|
160
W
|
|
Nominal
impedance
|
16Ω
|
|
SPL
|
Sensitivity
(1W; 1m on axis)
|
89
dB SPL (1 m/1 W) *1 *2
|
|
Peak
(Calculated)
|
111
dB SPL (1 m) *3
|
|

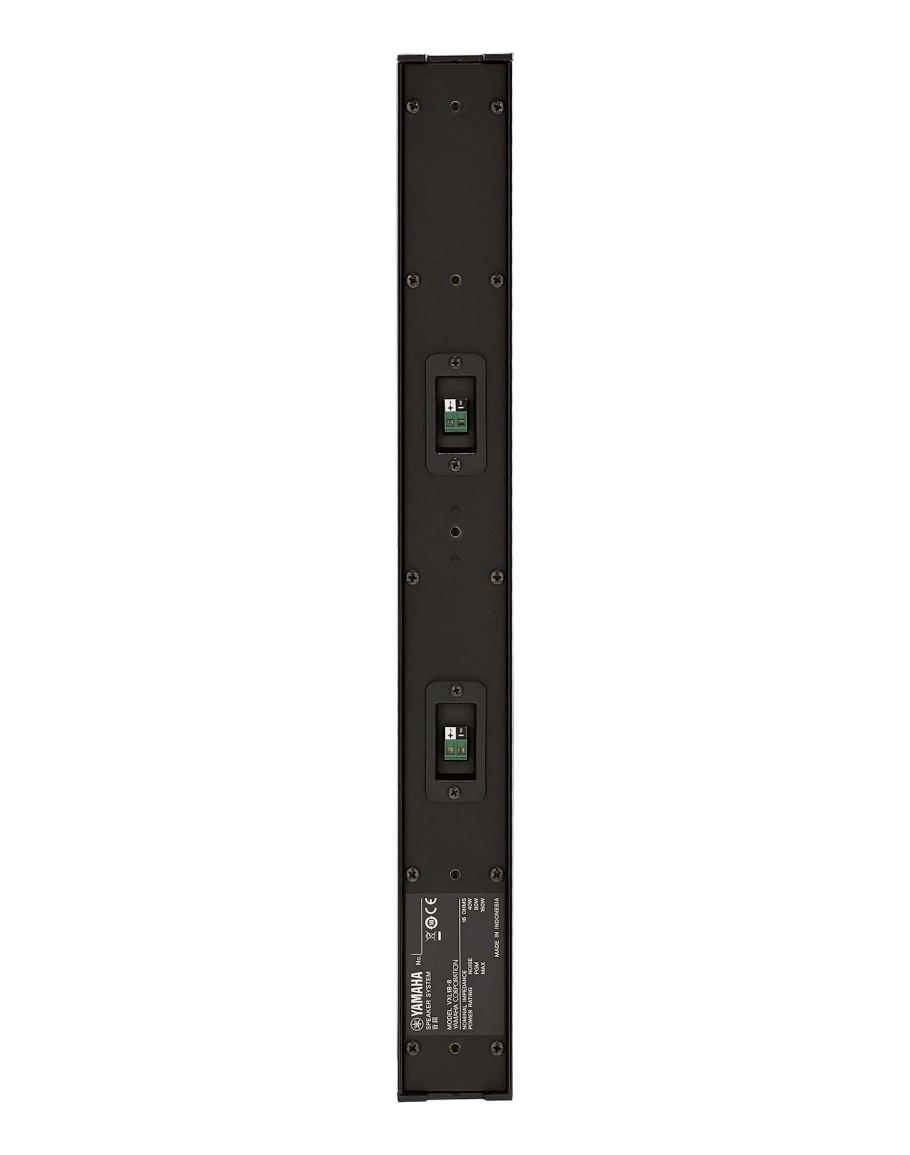

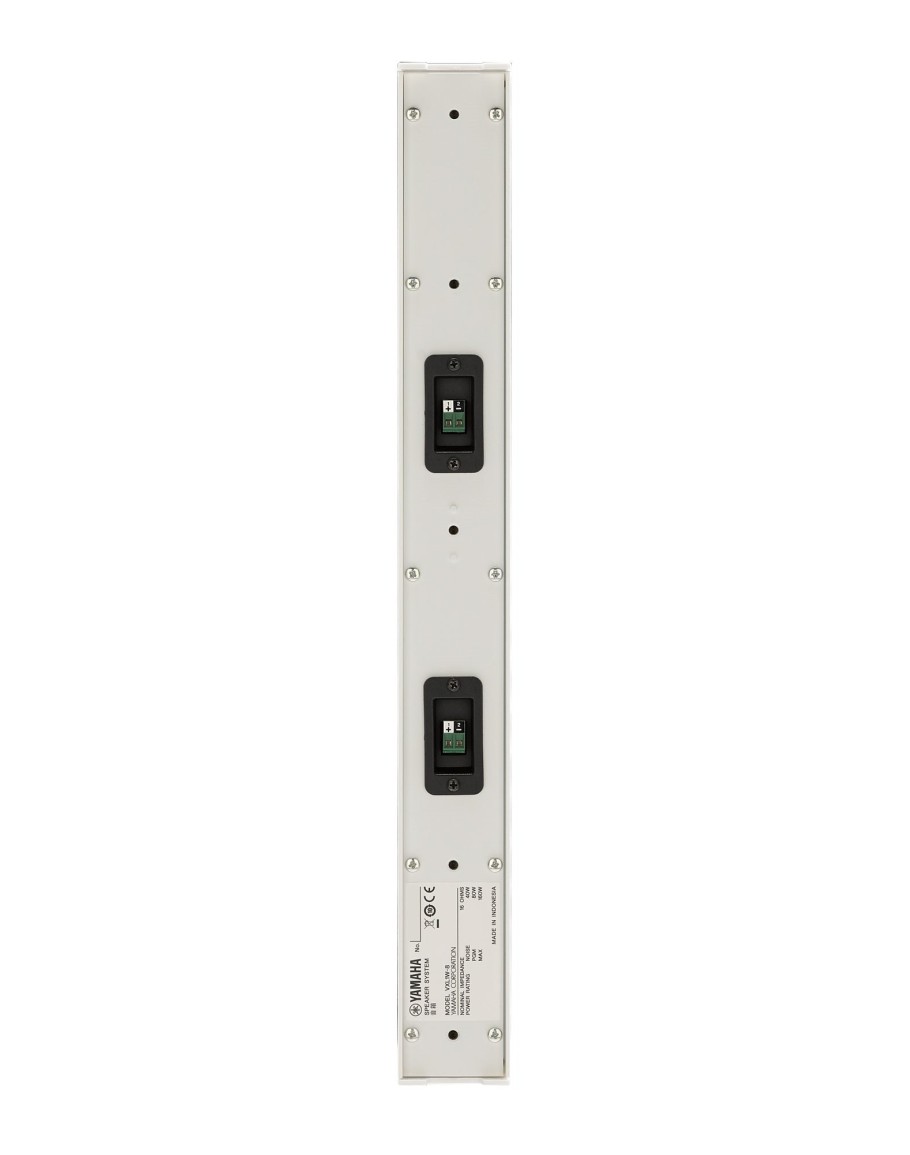

I/O
connectors
|
Euroblock
(2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
|
|
Protection
circuit
|
Load
protection
|
Full-range
power limiting to protecting network and transducers
|
|
Finish
|
VXL1B-8:
Black painting (approximate value: Munsell N3.0), VXL1W-8: White painting
(approximate value: Munsell N9.0)
|
|
IP-Rating
|
Dust
and water resistant : IP35
|
|
Packaging
|
Packaged
in 1 pc
|
|
Dimensions
(W x H x D)
|
2.1
x 18.9 x 4.1 in. (54 x 480 x 104 mm) - Speaker Only, 2.1 x 18.9 x 4.4 in. (54
x 1212 x 111.5 mm) - with Included Bracket
|
|
Weight
|
2.1
kg / 4.6 lbs (Speaker only)
|
|
